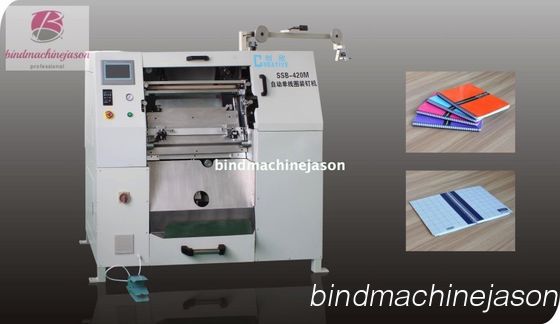

Spiral closing machine SSB420 with spiral lock for notebooks

China Spiral closing machine SSB420 with spiral lock  for notebooks supplier

Large Image :  Spiral closing machine SSB420 with spiral lock for notebooks

Product Details:

Place of Origin: Ningbo,China
Brand Name: Creative
Certification: CE
Model Number: SSB420

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD 2000-20000 per set
Packaging Details: wooden pallet
Payment Terms: T/T
Supply Ability: 10 sets per month
Detailed Product Description
Material: Use Nylon Coated Wire Spiral Lock: Have Spiral Lock
Spiral Size: Spiral Diameter From 8mm - 32mm Application: Notebook Spiral Binding
Book Thickness Range: Below 25mm Type: Spiral Closing Machine
Guarantee: 12 Months Services: Overseas Services Available

Spiral closing machine SSB420 with spiral lock for notebooks

Spiral closing machine

Description:

Notebook Spiral closing machine SSB420 used for spiral metal close,spiral metal bind is another bind method for notebook,also popular for market.Compare double wire bind,it save material,as only single coil,also the book used by single wire bind look more special.



Machine operational priciple :

Material nylon coated wire go straight by adjust device and be twist in the roll bar,the roll bar we also could call spiral forming bar,when spiral formed,worker put notebook in left feeder device,finish feeder action,notebook will be deliver to spiral bind work area,then knife cut,notebook drop down and deliver by conveyor.



Application:

Used for bind spiral notebooks in differ size

Spiral closing machine SSB420 with spiral lock  for notebooksSpiral closing machine SSB420 with spiral lock  for notebooks

Video do spiral notebook in customer factory:

https://www.youtube.com/watch?v=L37oV0lFtUE

Other video bind big thickness book,ask me,will send you by whatapps.

Spiral notebook wire bind  is another bind production,also popular in some area,this bind machine is mainly used do this work.Compare double wire bind,spiral closing more complex.



Now we break it,and help our customer  solved big thickness notebook. Many customer met thickness book,common use hand work,time cost and differ to arrange.This machine max could do wire diameter 32mm,commonly could spiral close 25mm around thickness books.



Even if you have spiral metal bind machine,some notebooks with differ page size also differ to handle.We also solve this problem,as this book feeder by hand hang in machine feeder hooks,it will be more accurate let the spiral mark hole and inside perfect.

Let means Notebook spiral bind edge length below 420mm,and thickness below 25mm,all could be finish.



Technical information :

Spiral diameter range

Diameter(mm) Line Diameter(mm) Aperture(mm) Binding thickness(mm)
8 0.7-0.8 Φ3.0 5
10 0.7-0.8 Φ3.0 7
12 0.8-0.9 Φ3.5 9
14 1.0-1.1 Φ4.0 11
16 1.0-1.1 Φ4.0 12
18 1.0-1.1 Φ4.0 14
20 1.1-1.2 Φ4.0 15
22 1.1-1.2 Φ5.0 17
25 1.1-1.2 Φ5.0 20
28 1.2-1.3 Φ5.0 23
32 1.2-1.4 Φ5.0 26



Spiral metal closing machine technical data

Speed 600-900 books/hour
Air Pressure 5-8 Kgf
Wire Diameter 8-32mm
Binding size 75mm-420mm
Power 1PH 220V 50/60HZ(other voltage on request
size 1900mmx700mx1600mm
Net weight 600Kg



Advantage compare similar machine:

1.Wide range productions could be handle,can not find in chinese market another machine which could handle this

2.Special bind structure which is differ from other similar machine

3.Good test in china and egypt market already,no need care it function



If you take interesting or have some thing not clearly,send me email,so easy
