Automatic spiral binding machine PBS420 with hole punching and coil lock function

Automatic spiral binding machine PBS420 with hole punching and coil lock function

    • Automatic spiral binding machine PBS420 with hole punching and coil lock function
    • Automatic spiral binding machine PBS420 with hole punching and coil lock function
    • Automatic spiral binding machine PBS420 with hole punching and coil lock function
  • Automatic spiral binding machine PBS420 with hole punching and coil lock function

    Product Details:

    Place of Origin: Ningbo
    Brand Name: Creative
    Certification: CE
    Model Number: PBS420

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Packaging Details: Wooden case
    Delivery Time: 20 work day
    Payment Terms: T/T
    Supply Ability: 10 sets per month
    Contact Now
    Detailed Product Description
    G Coil Lock: Spiral Diameter 14mm - 25mm Spiral Dia: 8mm-25mm
    L Lock: 8mm-25mm Binding Size: Max 420mm Min 70mm
    Punching Appearance: Oval ,round Hole Book Thickness: Max 20mm
    Material: Nylon Coated Wire Metal Speed: 1300 Books Per Hour
    Voltage: 3ph 380v Air Pressure: 5-8 KGF
    Weight: 1800KG Hole Pitch: 5mm ,6mm,6.35mm,8mm,8.47mm
    Condition: New After-sales Service Provided: Online Support,Video Technical Support,Engineers Available To Service Machinery Overseas
    Warranty: 12 Months Automatic Grade: Automatic
    Name: Automatic Spiral Binding Machine Function: Notebook Binding

    Automatic spiral binding machine PBS420 with hole punching and coil lock function



    spiral binding machine PBS420



    Spiral automatic binding machine PBS 420 is a perfect machine used for printing factory to produce single wire notebook job. It include paper feeding part , paper hole punching part ,spiral forming, spiral binding and scissor locking part with book collect part.



    Total machines actions : Auto feeder ----- Auto punching ------Auto hole match (include cover feeder function )----auto forming and binding----coil lock cut ---collect part

    Advantages:



    1. For large-scale productions of spiral book

    2. With G type back hook coil lock and L type common lock choice

    3. Suitable some notebook (cover binding size bigger than inner paper )

    4. Max could be used for 20mm thickness notebook



    Technical data:

    speed Up to1300 books per hour
    Air pressure 5-8 kgf
    Spiral diameter 8mm – 25mm
    Max binding width 420mm
    Min binding width 70mm
    G type back hook scissors range 14mm – 25mm
    L type common hook scissors range 8mm - 25mm
    Spiral hole pitch optional range 5,6,6.35,8,8.47 (mm)



    Binding function :

    Notebook :  cover binding width same with paper binding width

    Special notebook : Cover binding width bigger than paper binding width



    coil lock spiral booksingle wire lock bookcoil lock book

    Our spiral binding machine PBS420 will be your perfect choice for single wire binding ,it save your time ,save your labor cost and help you get big orders .

    Additional machines pictures :

    Spiral forming and binding part

    Automatic Single wire binding machine  PBS420

    Hole match and special cover feeder part

    Automatic spiral binding machine PBS420 with hole punching and coil lock function

    Hole punching part

    Automatic Spiral binding machine with hole punching function

    Spiral book Collect part

    Spiral binding machine with Coil lock

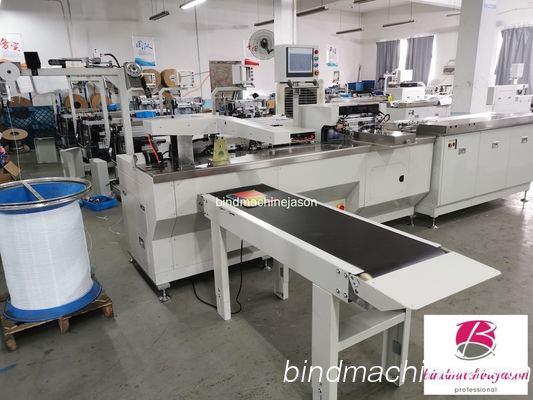

    Main part in one picture

    Automatic Spiral binding machine PBS420

    Above is our Automatic spiral binding machine PBS420 with hope punching function and coil lock function ,anything questions ,let me know .
