Double wire and spiral area punching and binding finish machines supplier.
Professional binding and punching machines provider from China.
Payment & Shipping Terms:
|Application:||Twin Ring Binding For Calendar And Notebook||Hole Punch:||Max Punch Width Is 580mm|
|Twin Ring Size:||1/4 - 3/4||Speed:||1000-1500 Books / Hour|
|Material:||Iron||Bind:||Twin Ring Binding Machine|
|Punch:||Hole Punching||Feeder Knife:||5 Feed Knife|
|Feeder Thickness:||Max 3mm||Punch Times:||Max 5 Times|
|Max Thickness:||15mm||Max Sheet:||580mm X 800mm|
|Min Sheet:||120mm X 105mm||Service:||Overseas Install And Training Available|
|Guarantee:||12 Month||OEM:||Could Be Add Your Logo|

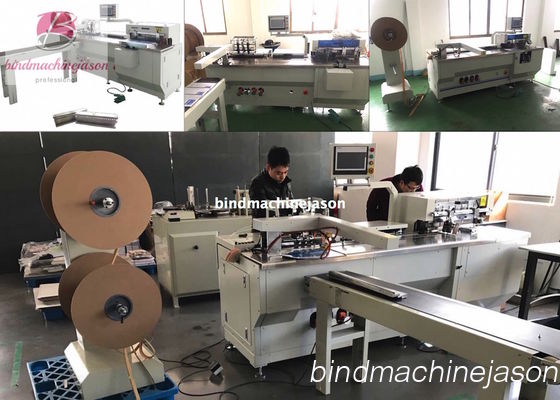

Automatic twin ring binding machine with hole punching function PBW580
Twin ring binding machine and hole punching inline PBW580 Description:
PBW580 twin ring binding machine include two function, twin ring binding function and paper hole punching function,total 3 actions,notebook feeder,punch,then push finger catch punched notebook to wire binding part,then close wire o,final be deliver to conveyor. Or calendar feeder,punch,then push finger catched calendar to twin ring binding part,then drop hanger,final be deliver to conveyor.
Notebook :Stacker → Punching → Hanger → Closing → Delivery Conveyor
Calendar: Stacker → Punching → Closing → Delivery Conveyor
Twin ring binding& punching inline machine Application:
PBW580 is advanced machine in wire o bind finish area,could be used in produce notebook,desk calendar and calendar wire o production.
Wire binding and hole punching in Notebook area :
Have two operate situation,notebook with same bind edge like below picture
Video upload in youtube :
If notebook with same size (cover and background size same with inner paper size), only need one people operate.
Notebook with differ size (cover bigger than inner paper),like below picture
Video upload in youtube :
If cover bigger than inner paper,need punch cover advance,and then do video show,need two people together
Wire o bind &punch in desk calendar area
In common,hard Cover could be punch with inner paper together.so only one people could handle.
Video do bind& punch for desk calendar
Twin ring binding &punch in calendar area
Calendar is a traditional gift ,if you are manufacture,please do not hesitate to contact us,this machine you deseve it.
Video wire o bind&punch for calendar:
Machine Technical data:
|Air pressure||5-8 kgf|
|Wire o diameter||1/4-3/4|
|Max size of paper||580mm x 800mm|
|Min size of paper||120mm x 105mm|
|Max punch thickness||5 times total 15mm|
|Electric power||3ph 380|
|Max punch edge size||580mm|
|Max bind edge size||580mm|
1.It combines auto punching and binding in one machine to save labour cost and improve production effciency
2.One machine could handle notebook,desk calendar,calendar bind and punch work
3.Not only one machine do bind and punch ,could be use seperate do bind or seperate do punch.
4.Auto collect production and could be set in touch screen for numbers books finished then move
5.If customer choose hanger device,could be do straight hanger and auto drop.
6.Complete Punch mould include two small punch moulds,and small punching moulds could change position.
If you take interesting or still have questions,send me email,so easy.
