Home Productsdouble ring wire closer

Notebook double ring wire closer DCB360 (1/4 - 1 1/4 )without moulds

Notebook double ring wire closer DCB360 (1/4 - 1 1/4 )without moulds

Notebook double ring wire closer DCB360 (1/4 - 1 1/4 )without moulds

Product Details:

Place of Origin: Ningbo
Brand Name: Creative
Certification: CE
Model Number: DCB360

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 2000-20000 per set
Packaging Details: Two woodencase pallets,one pallet (2.1×1.0×1.4 m³),other pallet (2.25×0.9×1.3m³)
Delivery Time: 10-20 work days
Payment Terms: TT
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Material: Iron Application: Notebook Double Ring Wire Closer
OEM: Accept OEM Touch Screen: Siemens
Converyor: Have One Conveyor Wire Diameter: 1/4 - 1 1/4
Type: Notebook Wire Binding Machine Guarantee: 12 Months
Services: Overseas Training And Install Available Bind Tool: No Need Change Bind Tool,save Time
Book Feeding Mode: Manual Working Speed: 800-1500 Books / Hour
Handing Of Double Wire: Automatic Cut ,closing And Conveying Max Binding Width: 360mm
Min Binding Width: 70mm Machine Net Weight: 300kg

Notebook double ring wire closer DCB360 (1/4 - 1 1/4 )without moulds

double ring wire closer DCB360


Description :

Notebook double ring wire closer DCB360 is a machine close wire o or double wire notebooks,easy adjust and operate.No need change mould,could close double wire size from 1/4 - 1 1/4.


Mainly used for print factory which produce notebook or desk calendar.Production bind edge size <360mm,all could be close by this machine.


Some customer want notebook with separate small loop wire close,also could be done by this machine.Touch screen there has many function,like wire separate,loops caculate,wire pitch change,and so on.

Size Pitch Notebook binding thickness (mm) wire o diameter(mm)
1/4 3:1 4.9 6.4
5/16 3:1 6.3 7.9
3/8 3:1 7.9 9.5
7/16 3:1 9.3 11.1
1/2 3:1 10.9 12.7
9/16 3:1 12.2 14.3
5/8 2:1 13.4 15.9
3/4 2:1 16.6 19.1
7/8 2:1 19.7 22.2
1 2:1 22.9 25.4
1 1/4 2:1 27.8 31.8


double ring wire closer DCB360 Applcation:

For  wire o notebooks and desk calnedar wire o or double wire closer

Notebook double ring wire closer DCB360 (1/4 - 1 1/4 )without moulds

Notebook wire o binding Video (in Thailand print factory) (chinese print factory)


Print facotry if mainly do notebooks wire bind,i think this wire bind machine is most sutible for you,easy adjust,stable,no mould need change mould,so it also save your cost.


Technical data:

Wire o  bind Speed 1000 books per hour
Air pressure 5 - 8 kgf
Wire diameter available  1/4 - 1 1/4
Max bind side length 360mm
Electric power 1ph 220v 50-60hz (other voltage on request)
Net weight 450KG



1.Easy adjust,control by plc.

2.Change wire size easy,no need change moulds.

3.Could close wire o notebook (first page and background page differ with inner paper)

4.Wide range use for wire o noteboks,could handle almost notebook bind edge size below 360mm

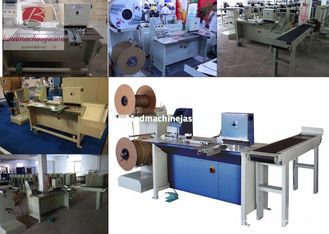

Addional pictures of machine

notebook wire binding machine DCB360


Tool box for adjust wire size from 1/4 - 1 1/4

Notebook double ring wire closer DCB360 (1/4 - 1 1/4 )without moulds


  • Electrical picture,we use Schneider electronica,and touch screen we use Siemens.


    Notebook double ring wire closer DCB360 (1/4 - 1 1/4 )without mouldsNotebook double ring wire closer DCB360 (1/4 - 1 1/4 )without moulds

    One year Guarantee of this machine,if you purchased and get some part wrong,could be repalce new to you,is free,you just need pay courier fee yourself.


  • Our 360 double wire binding machine is used for binding double wire books, notebooks, wall calendars, etc. It can bind wires from 1/4" to 1 1/4" without changing binding tools. With the integration of automatically unwinding the spool, loops cutting, conveying and closing, it increased the production efficiency and lowered the cost remarkably.
