Pfaeffle model Double wire forming machine DFA31/21 with good quality

China Pfaeffle model Double wire forming machine DFA31/21 with good quality supplier
Pfaeffle model Double wire forming machine DFA31/21 with good quality supplier Pfaeffle model Double wire forming machine DFA31/21 with good quality supplier Pfaeffle model Double wire forming machine DFA31/21 with good quality supplier Pfaeffle model Double wire forming machine DFA31/21 with good quality supplier

Large Image :  Pfaeffle model Double wire forming machine DFA31/21 with good quality

Product Details:

Place of Origin: Ningbo,China
Brand Name: Creative
Certification: CE
Model Number: DFA31/21

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 3000-30000 per set
Packaging Details: wooden pallet
Delivery Time: 10-15 work days
Payment Terms: T/T
Supply Ability: 10 sets per month
Detailed Product Description
Application: Produce Double Wire Typle: Double Wire Forming Machine
Orginal Model: Pfaeffle Model From Germany Use Material: Nylon Coated Wire
Production: 3:1pitch Or 2:1 Pitch Double Wire Machine Mould: One Mould One Wire O Size
Power: 1ph 220v 50/60 HZ Warrenty: 12 Months

Pfaeffle model Double wire forming machine DFA31/21 with good quality

Pfaeffle model Double wire forming machine DFA31/21 with good quality

Description:

Double wire forming machine DFA31/21 is a machine come from Germany pfaeffle first,is a very common and old type machine exist in the world to produce double wire ,double loop wire,twin loop wire,double-o,ring wire,wire o.



Now already have high speed wire forming machine by Kugler-womako,but Pfaeffle model DFA31/21 cheapest,affordable,also with perfect wire produce.

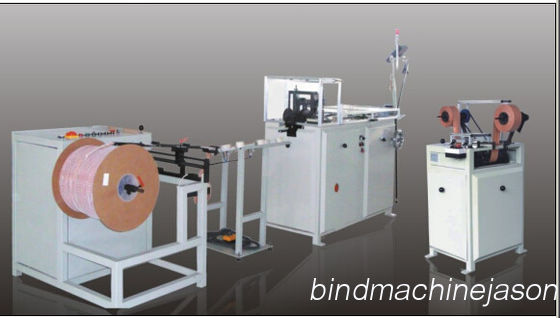

Mainly Double wire forming machine has 3 parts,wire former part + spooling roll part for collect wire o +Craft cut part for separate wire when rolled.



This machine is our manufacture first developed machine in 2003,give us good luck and profits.Now many chinese material supplier are our customers,so if you have material needs or produce wire o  business project,tell me.



Production:

Below is two productions,Roll double wire  used for wire bind equipment ,and Cut double loop wire.

Pfaeffle model Double wire forming machine DFA31/21 with good qualityPfaeffle model Double wire forming machine DFA31/21 with good quality

Size

Size Pitch Nylon coated wire diameter(mm) wire o diameter(mm)
1/4 3:1 0.7 6.4
5/16 3:1 0.8 7.9
3/8 3:1 0.8 9.5
7/16 3:1 0.9 11.1
1/2 3:1 0.9 12.7
9/16 3:1 1.0 14.3
5/8 2:1 1.1 15.9
3/4 2:1 1.2 19.1
7/8 2:1 1.2 22.2
1 2:1 1.25 25.4
1 1/4 2:1 1.5 31.8



To produce double wire ,twin loop wire,ring wire,wire o ,we could classify based pitch 3:1 and pitch 2:1.

3: 1pitch in common include (   1/4,      5/16,    3/8,      7/16,      1/2,     9/16)

2: 1pitch in common include (   5/8,       3/4,     7/8,      1,         1 1/4)



Double Wire forming machine DFA could prodcue total pitch wire o ,we have 3 type wire forming machine,Machine produce 3:1 pitch,we call DFA31.Machine produce 2:1 common pitch (5/8,3/4,7/8,1),we call DFA21.and the third machine do speical size 1 1/4



Differ sizes differ moulds and may be differ machine,you can not use DFA21 to produce 3:1 pitch wire,you only could be use DFA21 to produce 2:1 pitch range wire size.

The same to DFA31 can not produce 2:1 pitch,you can only use DFA31 to prouce 3:1 pitch range wire size.



Double Wire forming machine work video :

https://www.youtube.com/watch?v=YtnLJf8rlqk&t=5s   (in customer factory do roll wire produce)

Produce roll double wire :

Pfaeffle model Double wire forming machine DFA31/21 with good quality



Produce double loop wire work video

https://www.youtube.com/watch?v=YtnLJf8rlqk&t=5s             (inline with wire o cut machine produce loop wire)

Pfaeffle model Double wire forming machine DFA31/21 with good quality







Material :

Nylon coated wire is used for wire forming machine material to be produce wire .

Differ wire size commonly use differ Nylon coated wire model,diameter from (0.7 - 1.5 ),have many size,so



when you purchase machine need material wire,can contact me first.
