Double wire and spiral area punching and binding finish machines supplier.
Professional binding and punching machines provider from China.
Payment & Shipping Terms:
|Application:||Calendar Wire Binding||Size:||Max Bind Edge 520mm|
|Hanger:||Hanger Device Could Be Choose||Book Bind:||Need Cover And Inner Paper Same Bind Edge|
|Speed:||1000-1500 Books/hour||Senor:||Product In,auto Feeder And Close Wire|
|Material:||Iron,not Aluminum,more Stable||Type:||Loop Wire Binding Machine|
Calendar loop Wire binding machine DCA520 with hanger part affordable price
Calendar loop wire binding machine DCA520 maily for print factory do calendar double wire loops productions.With hanger part and big size bind plate,it could easy handle almost calendar.
Iron structure make it more stable than other similar machine,special push belt set middle plate could be open when you do notebook,it will deliver notebook to conveyor,also could be close if you do calendar.
This machine need change mould if you change wire size, adjustment is easy
We export many many sets to worldwide,special in Europe,there we have partner to help us sell.
To be bind or close twin loop wire production like calendar,see below:
Video of double wire bind do calendar in customer factory
Calendar is very common production in every one life,consider it has time expire,so for print factory all over world import less from china,they will remain this produce in loca market,in order to meet their customer needs in any time.So have a stable calendar wire o bind machine is very important,this wire o bind machine could be affordable and easy adjust,it could handle small order,also could be handle big order ,let is a great flexible machine.
Do notebook twin loop wire o production
Video do double loop wire bind notebook in customer factory:
Through this double loop wire bind machine used mainly for calendar,but some time,it also couble help you finish wire o notebook job. But be noted : has limit in notebook double wire bind . Need notebook not big thickness,and cover same with inner paper bind edge size. The reason is this machine wire diameter available range is from 1/4 - 3/4,and some structure limit for paper feeder method,if cover differ inner paper bind edge size,the hold can not easy match wire o .
|Speed||1000-1500 bind finish per hour|
|Air pressure||5-8 kgf|
|Electric power||1 ph 220v 50/60HZ (on your request)|
|Wire diameter||1/4 - 3/4|
|Net weight||400 KG|
|Max bind thickness||about 15mm|

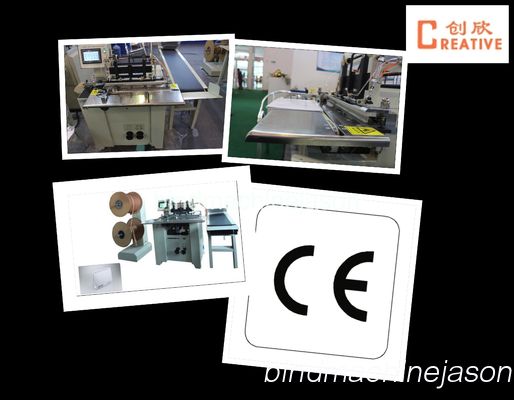

Machine picture in some angle:
1.Two working method,by pedal or by sensor.
2.Conveyor can be open and closed,suit for binding calendar or book.
3.Touching screen functions more rich
4.Have memory function,if you change mould ,you can set memory first,and when exchnage use previous size,save your time adjust
double wire bind machine could be inline with our forming machine,see below:
Some print factory have forming machine,if one wire size stable and large use,it could inline with wire forming machine,so do not need wire o roll feeder device.Save material cost and time.
If you take interesting or still have questions,send me email.
