Double ring inserting machine inline hole punching PBW580 for calendar and book

China Double ring inserting machine inline hole punching PBW580 for calendar and book supplier
Double ring inserting machine inline hole punching PBW580 for calendar and book supplier Double ring inserting machine inline hole punching PBW580 for calendar and book supplier Double ring inserting machine inline hole punching PBW580 for calendar and book supplier Double ring inserting machine inline hole punching PBW580 for calendar and book supplier

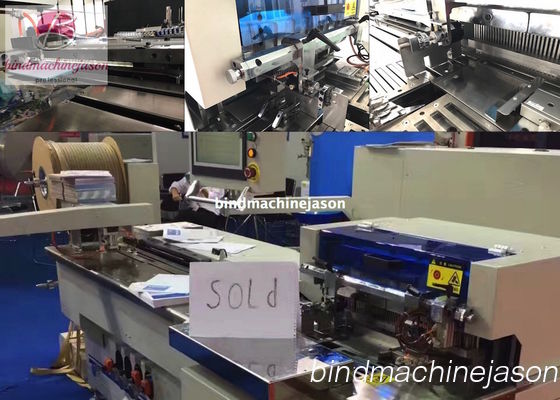

Large Image :  Double ring inserting machine inline hole punching PBW580 for calendar and book

Product Details:

Place of Origin: Ningbo
Brand Name: Creative
Certification: CE
Model Number: PBW580

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD 4000-40000 usd per set
Packaging Details: woodencase
Delivery Time: 30-40 work days
Payment Terms: TT
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Application: Double Ring Inserting For Notebook And Calendar Hole Punch: Max Punch Width Is 580mm
Wire O Range: 1/4 - 3/4 Speed: 1000-1500 Books / Hour
Material: Iron Bind: Double Ring Inserting Machine
Punch: Hole Punching Feeder Knife: 5 Feed Knife
Feeder Thickness: Max 3mm Punch Times: Max 5 Times
Max Thickness: 15mm Max Sheet: 580mm X 800mm
Min Sheet: 120mm X 105mm Service: Overseas Install And Training Available
Guarantee: 12 Month OEM: Could Be Add Your Logo

Double ring inserting machine inline hole punching PBW580 for calendar and book

Double ring inserting machine inline hole punching PBW580

Double ring inserting machine and hole punching inline PBW580​ Description:

PBW580 double ring inserting machine include two function,double ring inserting function and paper hole punching function,total 3 actions,notebook feeder,punch,then push finger catch punched notebook to wire inseting part,then close wire o,final be deliver to conveyor. Or calendar feeder,punch,then push finger catched calendar to twin wire inserting part,then drop hanger,final be deliver to conveyor.



Notebook :Stacker → Punching → Hanger → Closing → Delivery Conveyor

Calendar:  Stacker → Punching → Closing → Delivery Conveyor



Double rinig inserting& punching inline machine Application:



PBW580 is advanced machine in wire o binding finish area,could be used in produce notebook,desk calendar and calendar wire o production.



Double ring inserting and hole punching  in Notebook area :

Have two operate situation,notebook with same bind edge like below picture



Double ring inserting machine inline hole punching PBW580 for calendar and book



Video upload in youtube :

https://www.youtube.com/watch?v=ipgABRhvep8

If notebook with same size (cover and background size same with inner paper size), only need one people operate.



Notebook with differ size (cover bigger than inner paper),like below picture

Double ring inserting machine inline hole punching PBW580 for calendar and bookwire books produced by PWB580 wire binding machineDouble ring inserting machine inline hole punching PBW580 for calendar and book



Video upload in youtube :

https://www.youtube.com/watch?v=HC0UCRt8dQQ

If cover bigger than inner paper,need punch cover advance,and then do video show,need two people together



Twin ring inserting &punch in desk calendar area

Double ring inserting machine inline hole punching PBW580 for calendar and book

In common,hard Cover could be punch with inner paper together.so only one people could handle.

Video do bind& punch for desk calendar

https://www.youtube.com/watch?v=_WJuOkT33uc



Double ring inserting &punch in  calendar area

Double ring inserting machine inline hole punching PBW580 for calendar and bookDouble ring inserting machine inline hole punching PBW580 for calendar and bookDouble ring inserting machine inline hole punching PBW580 for calendar and book

Calendar is a traditional gift ,if you are manufacture,please do not hesitate to contact us,this machine you deseve it.

Video wire o bind&punch for calendar:

https://www.youtube.com/watch?v=dstf4hwGd-Y&t=2s



Machine Technical data:

speed 600-1500 production/hour
Air pressure 5-8 kgf
Wire o diameter 1/4-3/4
Max size of paper 580mm x 800mm
Min size of paper  120mm x 105mm
Max punch thickness 5 times total 15mm
Electric power  3ph 380
Max punch edge size  580mm
Max bind edge size  580mm

Machine advantage:

1.It combines auto punching and binding in one machine to save labour cost and improve production effciency

2.One machine could handle notebook,desk calendar,calendar bind and punch work

3.Not only one machine do bind and punch ,could be use seperate do bind or seperate do punch.

4.Auto collect production and could be set in touch screen for numbers books finished then move

5.If customer choose hanger device,could be do straight hanger and auto drop.

6.Complete Punch mould include two small punch moulds,and small punching moulds could change position.



If you take interesting or still have questions,send me email,so easy.
